Key data at a glance

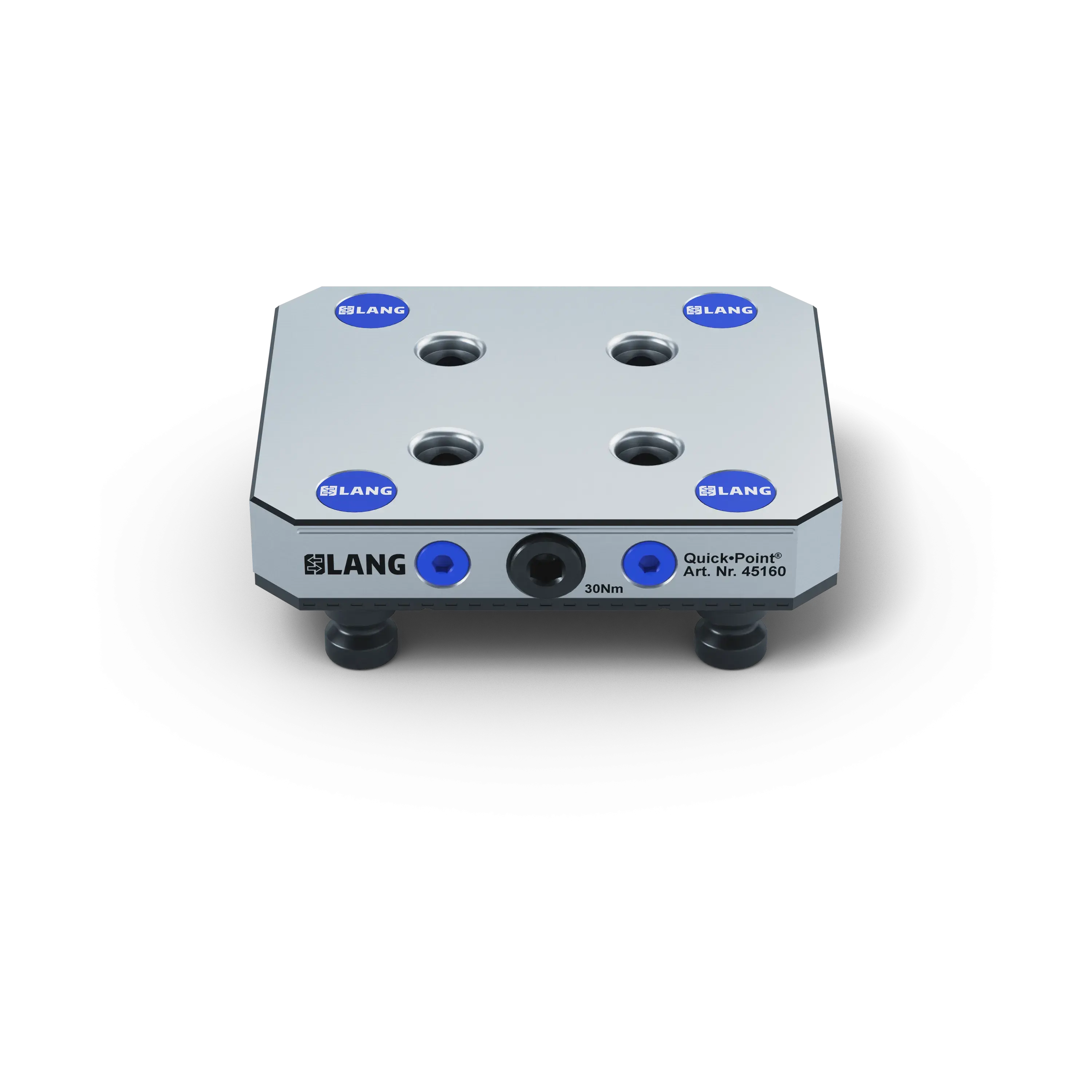

The receiver plate emphasizes the modularity and versatility of the zero-point clamping system. This facilitates the change from the large 96 mm grid size to the small 52 mm grid size if the user has not only large but also small clamping devises in use. Here, and thanks to the raised position of the clamping device, the receiver plate improves accessibility when machining small components.
Dimensions
150 x 126 x 27 mm (5.91" x 4.96" x 1.06")
Clamping type
Single clamping
Mounting bores
No, but not necessary
Keyways
No, not possible
M5 indexing bores
No, but possible (service)
Packaging Unit
1 Piece
Weight
3.6 kg (7.94 lbs)
Material
Steel
More features:
供货范围：
1 x Adaptor Plate
4 x Quick•Point® plastic covers ø 20 mm (item number 45008-20)
