Key data at a glance

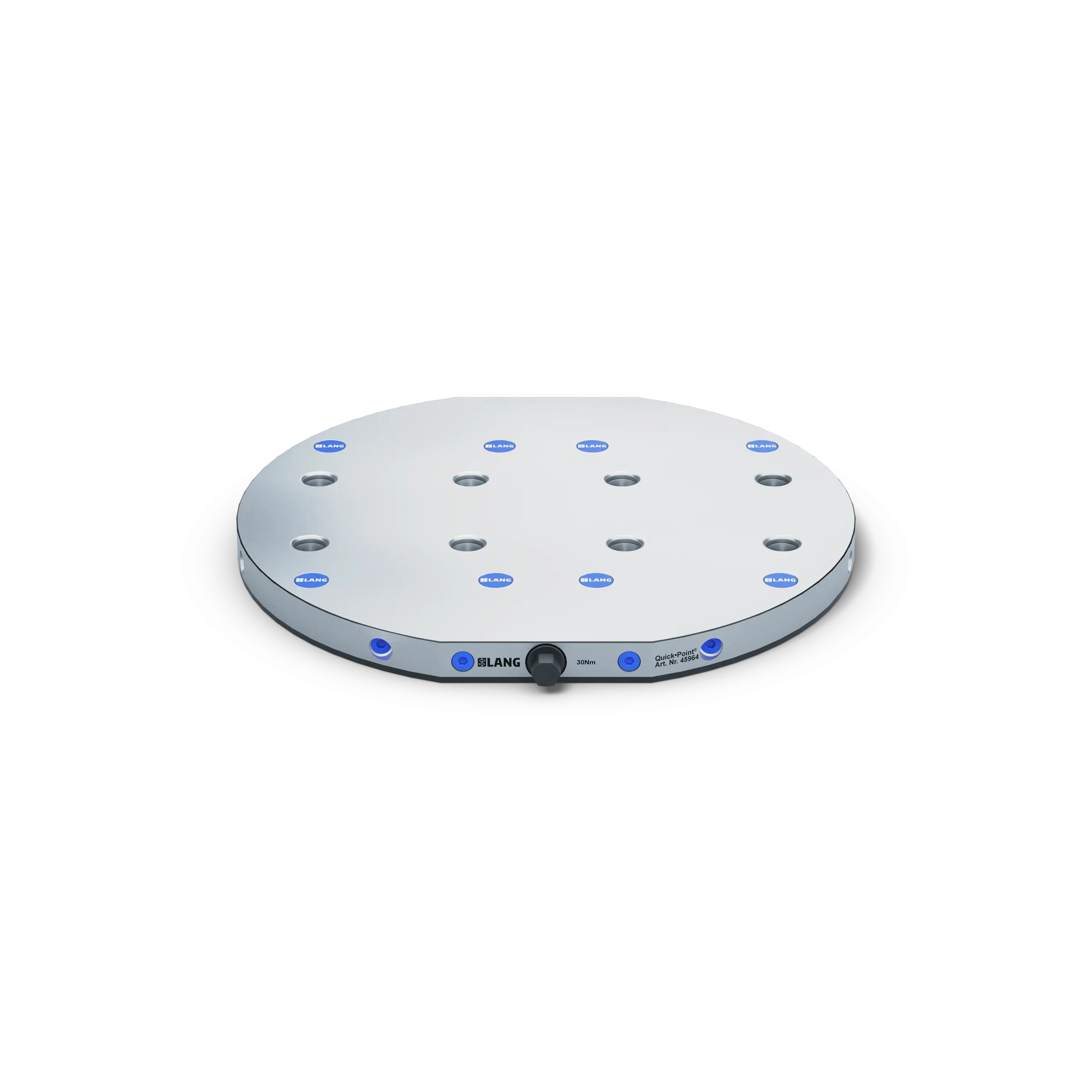

The round 2-fold grid plate 96 is suitable for equipping round machine tables of a medium size with a zero-point clamping system over as large an area as possible. With its mounting hole pattern, it can be mounted on all machine tables with 100 mm slot spacing and is able to accommodate either one or two clamping devises side by side. It is operated via the clamping screw or the Quick-Lock fastener.
Dimensions
⌀ 384 x 27 mm (15.12" x 1.06")
Clamping type
Multi clamping
Clamping units
2-fold
Mounting bores
for 100 mm groove spacing
Keyways
20 H7 / No, but possible (service)
M5 indexing bores
No, but possible (service)
Packaging Unit
1 Piece
Weight
22.4 kg (49.38 lbs)
Material
Steel
More features:
供货范围：
1 x Zero-Point Plate
8 x Quick•Point® plastic covers ø 20 mm (item number 45008-20)
2 x ring nut
