Key data at a glance

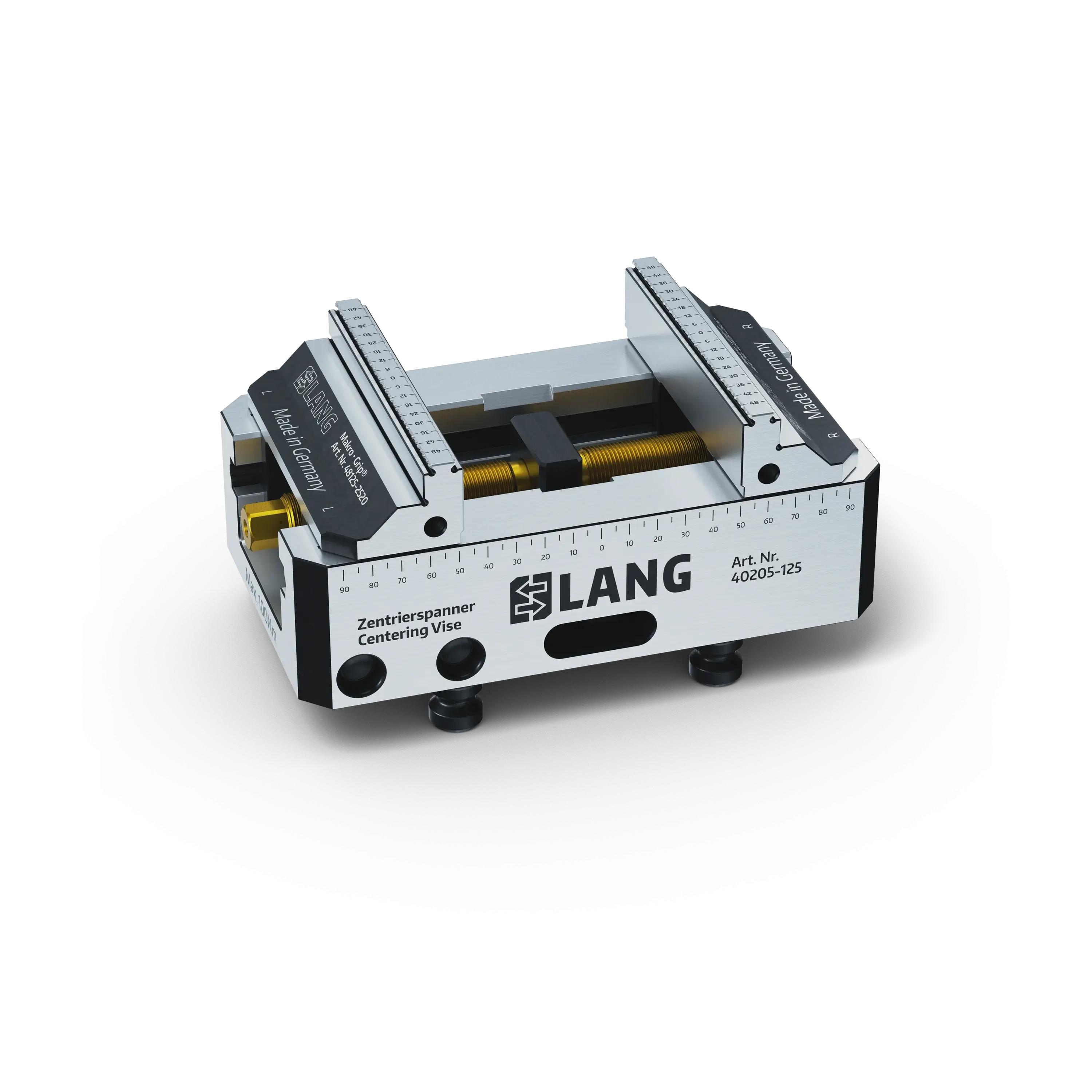

The Makro•Grip® 5-axis vise with a jaw width of 125 mm and a clamping range of up to 205 mm offers maximum process reliability in 5-axis machining. Due to its compact design and low interference contours, the workpiece is ideally accessible for the tools used. Thanks to its form-fit clamping, it achieves maximum holding forces despite low clamping pressure. Even with high-tensile material, it is able to clamp workpieces without distortion. The gentle clamping also means that there is no wear on the 5-axis vise. This vise version can be used both in manual CNC machining and automated with the RoboTrex 96 automation system.
Clamping range
0 - 205 mm (0" - 8.07")
Dimensions
210 x 125 x 89 mm (8.27" x 4.92" x 3.5")
Clamping method
by form-fit / by friction
Workpiece shape
cubic
Packaging Unit
1 Piece
Weight
10.1 kg (22.27 lbs)
Material
Steel
More features:
Single components features:
Spare Jaws
Dimensions
Jaw width: 125 mm (4.92")
Spindle + Center Piece
Spindle length
214 mm (8.43")
Thread pitch
M20 x 1.5
Clamping Studs
Diameter
20 mm (0.79")
For grid size
96
Threaded pin
M10
注意：
Can be used in the RoboTrex automation system.
